Parallel execution

Java
Kotlin

JVM only

This page is only applicable to the JVM implementation of Cucumber.

Cucumber-JVM allows parallel execution across multiple threads since verison 4.0.0.

There are several options to incorporate this built-in feature in a Cucumber project. You can do so using:

JUnit 5
JUnit 4
TestNG
CLI

For each of these options, this tutorial will look at the project setup, configuration settings and execution commands.

JUnit 5

Cucumber Scenarios can be executed in parallel using the JUnit Platform.

See the cucumber-junit-platform-engine documentation for details.

JUnit 4

Cucumber can be executed in parallel using JUnit and Maven test execution plugins. In JUnit the feature files are run in parallel rather than scenarios, which means all the scenarios in a feature file will be executed by the same thread. You can use either Maven Surefire or Failsafe plugin to execute the runners.

Create a Maven project in your favorite IDE using the cucumber-archetype or by adding Cucumber dependencies to the POM as detailed here and Junit dependencies here.
Create a parallel folder (or any other name) in src/test/resources path and add the two feature files (scenarios.feature and scenario-outlines.feature) inside it.

Feature: Scenarios feature file

  Scenario: Scenario Number One
    Given Step from 'Scenario 1' in 'scenarios' feature file

  Scenario: Scenario Number Two
    Given Step from 'Scenario 2' in 'scenarios' feature file

Feature: Scenario Outlines feature file

  Scenario Outline: <scen_out_row_num>
    Given Step from '<scen_out_row_num>' in 'scenario-outlines' feature file

    Examples:
      | scen_out_row_num       |
      | Scenario Outline Row 1 |
      | Scenario Outline Row 2 |

Add the step definition class to the parallel package (same name as folder above for automatic pickup by runner) in src/test/java folder.

package parallel;

import io.cucumber.java.BeforeStep;
import io.cucumber.java.en.Given;

public class StepDefs {

	@Given("Step from {string} in {string} feature file")
	public void step(String scenario, String file) {
		System.out.format("Thread ID - %2d - %s from %s feature file.\n",
		Thread.currentThread().getId(), scenario,file);
	}
}

Add a cucumber runner using the RunWith annotation in the parallel package (same name as step definition package) in the src/test/java folder.

package parallel;

import io.cucumber.junit.Cucumber;
import org.junit.runner.RunWith;

@RunWith(Cucumber.class)
public class RunCucumberTest {
}

Add the Surefire plugin configuration to the build section to the POM.

<plugin>
	<groupId>org.apache.maven.plugins</groupId>
	<artifactId>maven-surefire-plugin</artifactId>
	<version>2.22.0</version>
	<configuration>
		<parallel>methods</parallel>
		<useUnlimitedThreads>true</useUnlimitedThreads>
	</configuration>
</plugin>

Use the Maven install or a suitable command to execute the POM. This should run in parallel threaded mode. You should see a result similar to below. It is important to note that both the scenarios in the file (scenarios.feature) are executed by thread with ID 14. Similarly both the rows of the scenario outline in the file (scenario-outlines.feature) are executed by thread with ID 13.

Thread ID - 13 - Scenario Outline Row 1 from scenario-outlines feature file.
Thread ID - 13 - Scenario Outline Row 2 from scenario-outlines feature file.
Thread ID - 14 - Scenario 1 from scenarios feature file.
Thread ID - 14 - Scenario 2 from scenarios feature file.

To execute using a Maven Failsafe plugin include the below configuration in the build section to the POM. Rename the runner class to RunCucumberIT.

<plugin>
	<groupId>org.apache.maven.plugins</groupId>
	<artifactId>maven-failsafe-plugin</artifactId>
	<version>2.22.0</version>
	<executions>
		<execution>
			<goals>
				<goal>integration-test</goal>
				<goal>verify</goal>
			</goals>
			<configuration>
				<parallel>methods</parallel>
				<useUnlimitedThreads>true</useUnlimitedThreads>
			</configuration>
		</execution>
	</executions>
</plugin>

To set the thread count to a specific number instead of useUnlimitedThreads use the below setting.

<configuration>
	<parallel>methods</parallel>
	<threadCount>4</threadCount>
</configuration>

The thread count in the above setting is 4 threads per core. If you want this to be 4 threads across all cores set the perCoreThreadCount to false.

<configuration>
	<parallel>methods</parallel>
	<threadCount>4</threadCount>
	<perCoreThreadCount>false</perCoreThreadCount>
</configuration>

In case of multiple runners one can also set the parallel option to classesAndMethods or classes in addition to methods.

<configuration>
	<parallel>classesAndMethods</parallel>
	useUnlimitedThreads>true</useUnlimitedThreads>
</configuration>

TestNG

Cucumber can be executed in parallel using TestNG and Maven test execution plugins by setting the dataprovider parallel option to true. In TestNG the scenarios and rows in a scenario outline are executed in multiple threads. One can use either Maven Surefire or Failsafe plugin for executing the runners.

Create a Maven project in your favorite IDE adding Cucumber dependencies to the POM as detailed here and TestNG dependencies here.
Add the two feature files (scenarios.feature and scenario-outlines.feature) and step definition class as described in the JUnit section.

Add a cucumber runner by extending the AbstractTestNGCucumberTests class and overriding the scenarios method in the parallel package (same name as step definition package) in src/test/java folder. Set the parallel option value to true for the DataProvider annotation.

package parallel;

import org.testng.annotations.DataProvider;
import io.cucumber.testng.AbstractTestNGCucumberTests;

public class RunCucumberTest extends AbstractTestNGCucumberTests{

	@Override
	@DataProvider(parallel = true)
	public Object[][] scenarios() {
		return super.scenarios();
	}
}

Add the Maven Surefire plugin configuration to the build section of the POM.

<plugin>
	<groupId>org.apache.maven.plugins</groupId>
	<artifactId>maven-surefire-plugin</artifactId>
	<version>2.22.0</version>
</plugin>

Use the Maven install or a suitable command to execute the POM. This should run in parallel thread mode. You should see a result similar to below. The scenarios and rows of the scenario outlines are executed in different threads.

Thread ID - 15 - Scenario Outline Row 2 from scenario-outlines feature file.
Thread ID - 14 - Scenario Outline Row 1 from scenario-outlines feature file.
Thread ID - 16 - Scenario 1 from scenarios feature file.
Thread ID - 17 - Scenario 2 from scenarios feature file.

To execute using a Maven Failsafe plugin, setup the POM as described in the JUnit section. Remove the parallel and useUnlimitedThreads settings in the configuration part.

The default thread count of the dataprovider in parallel mode is 10. To change this the dataproviderthreadcount property needs to be added to the configuration section of the Surefire or Failsafe plugin in the POM.

<configuration>
	<properties>
    	<property>
        	<name>dataproviderthreadcount</name>
        	<value>20</value>
    	</property>
	</properties>
</configuration>

If you have multiple runners, set the parallel configuration to classes to reduce execution times. In addition the threadCount can be set to to the desired value or useUnlimitedThreads can be set to true.

<configuration>
	<parallel>classes</parallel>
	<threadCount>4</threadCount>
</configuration>

CLI

The Main class in the io.cucumber.core.cli package is used to execute the feature files. You can run this class directly from the command line; in that case, there is no need to create any runner class. The usage options for this class are mentioned here. The --threads option needs to be set to a value greater than 1 to run in parallel. When the parallel mode is used, the scenarios and rows in a scenario outline will be run in multiple threads.

Follow the steps below to execute the command from a terminal.

Add the two feature files (scenarios.feature and scenario-outlines.feature) and step definition class as described in the JUnit section.
Open up a terminal window and navigate to the source folder of the project, in this case parallel.

Compile the step definition class. Add the path to the folder containing cucumber jars to the classpath using the -cp option.

javac -cp .;<path to cucumber jar folder>/* ./parallel/StepDefs.java

Execute using the below command.

java -cp .;<path to cucumber jar folder>/* io.cucumber.core.cli.Main --threads 4 -g parallel parallel

You should get a console output similar to below.

Thread ID - 11 - Scenario Outline Row 1 from scenario-outlines feature file.
Thread ID - 14 - Scenario 2 from scenarios feature file.
Thread ID - 12 - Scenario Outline Row 2 from scenario-outlines feature file.
Thread ID - 13 - Scenario 1 from scenarios feature file.

Timeline formatter

For a visual representation of threads, add the timeline report using the plugin option of CucumberOptions annotation on a JUnit or TestNG runner.

@CucumberOptions(plugin= {"timeline:<report folder>"})

In case of CLI, the below command can be used.

java -cp <classpath> io.cucumber.core.cli.Main -p timeline:<report folder> --threads <thread count> -g <steps package> <path to feature files>

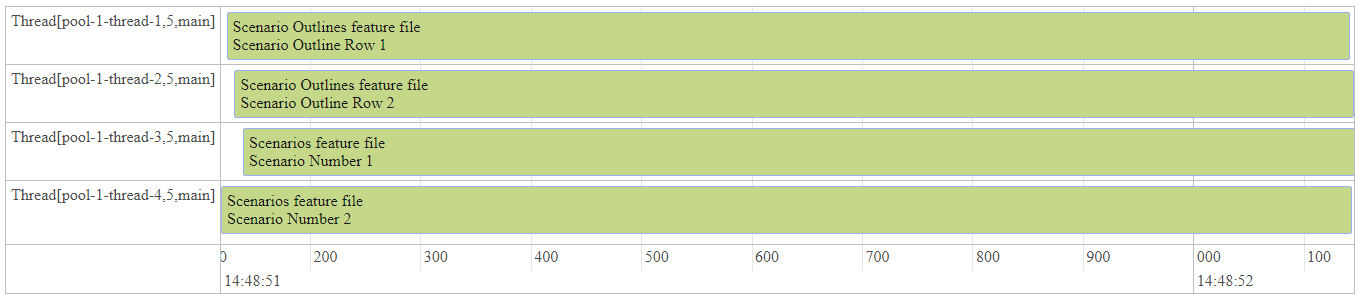

Below is a sample report.

Timeline report
